HD 1140 - Etronic II (Ehrle)

Print
A powerful and versatile 3-phase hot water pressure washer, sporting a high-performance burner system and user-friendly design, making it suitable for a wide range of commercial and industrial cleaning tasks.

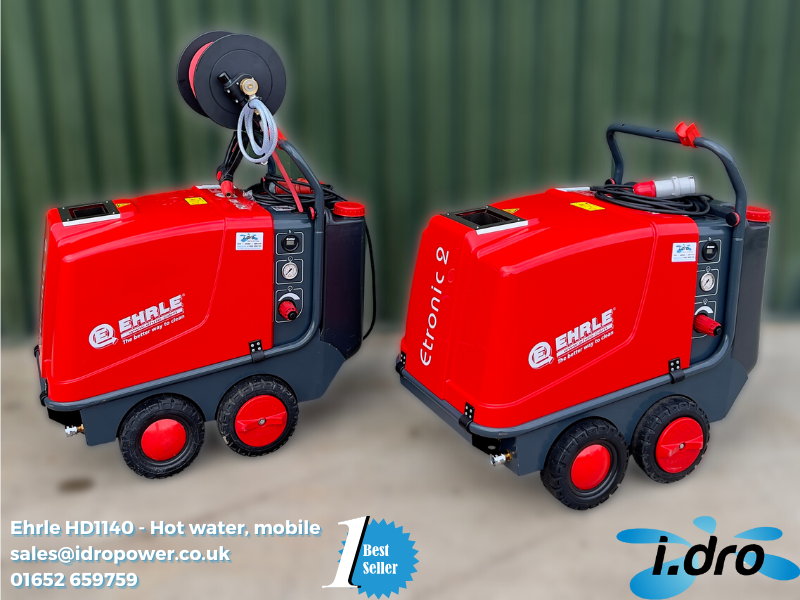

A pair of Ehrle HD1140s: one premium, with hose reel, and one standard. A popular IdroPower machine it is one of our best seller and hire products overall.A pair of Ehrle HD1140s: one premium, with hose reel, and one standard. A popular IdroPower machine it is one of our best seller and hire products overall.

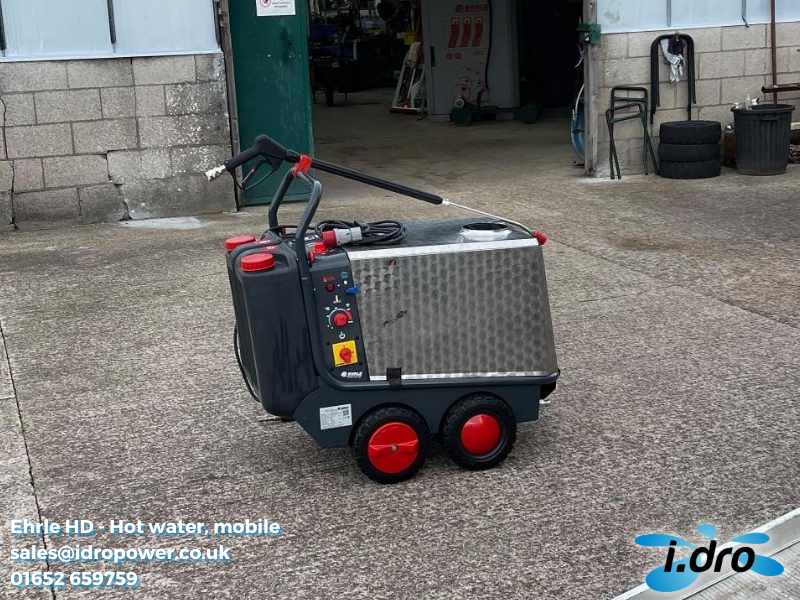

An Ehrle HD1140, with stainless steel protective case, being dropped off with an IdroPower customer on hire. Good job it moves: it has 40'000m2 of greenhouse to clean!

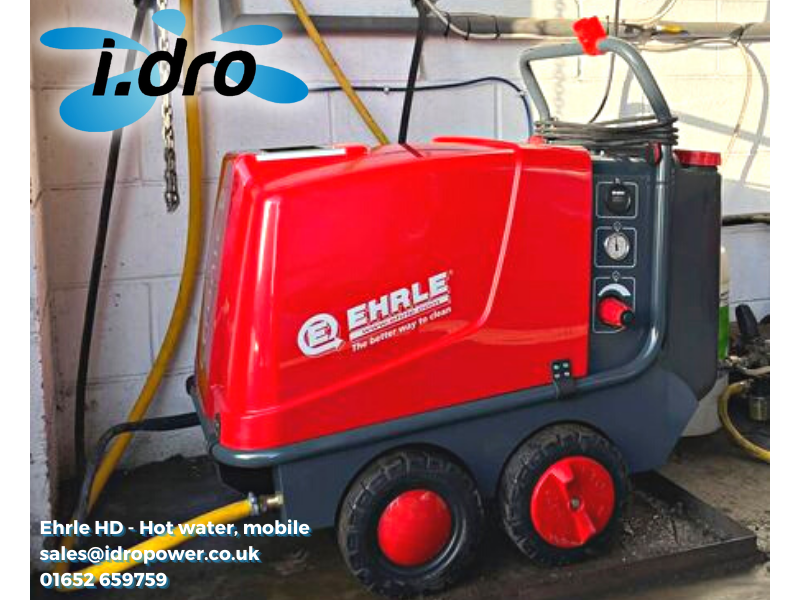

An Ehrle HD1140 hooked up and ready to go

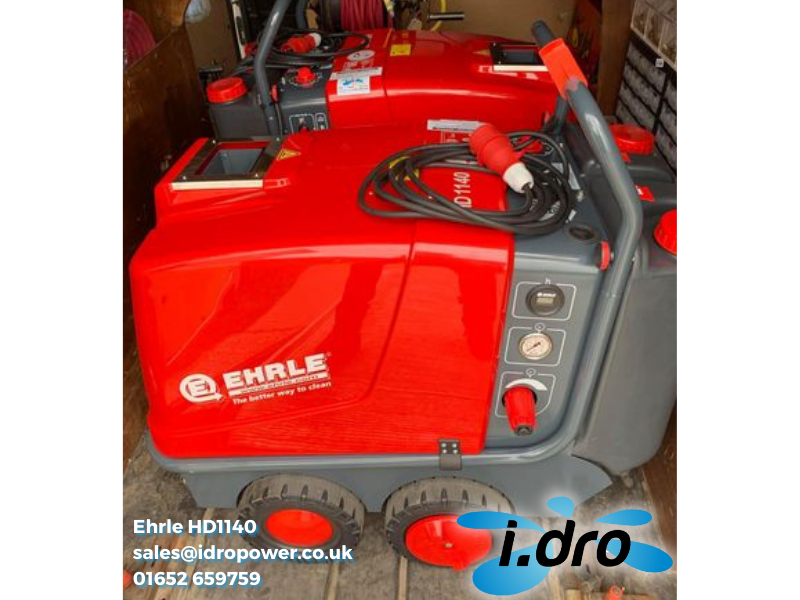

A pair of Ehrle HD1140s loaded up in one of our IdroPower service vans ready to be delivered.

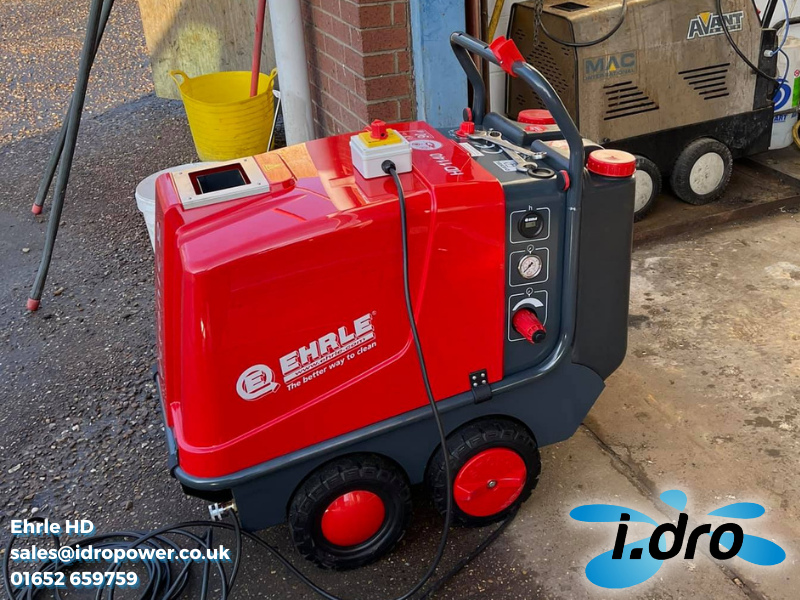

An Ehrle HD1140
A pair of Ehrle HD1140s: one premium, with hose reel, and one standard. A popular IdroPower machine it is one of our best seller and hire products overall.
Description

Three Phase (400V) - Hot Water (30 - 98°C) - Mobile

The Ehrle HD1140 pressure washer is a siege engine primed for laying waste to your cleaning tasks. By far the weapon of choice, it is one of the most popular jet washers among the IdroPower hire and sales fleet. Merging practical features to make your life easier, such as quick-coupling and chemical dosing systems, the HD1140 also packs a knee-weakening punch. Kicking out up to 230BAR of pressure at 98°C and 16.6 litres per minute, just be sure to aim and hold on tight.

Like any siege engine worth its salt, the HD1140 is highly manoeuvrable. Boasting a robust chassis with rubber wheels, customers choose them for their mobility. (A 40m hose reel can also increase their range and versatility!) For example, we regularly supply the HD range and the HD1140 specifically to customers with vast worksites spanning acres of space. (The stainless steel HD in the pictures above was supplied to clean greenhouses spanning 40'000m2. (9.9acres))

Using Ehrle's Etronic II controls, the HD1140 blends a simple analogue user interface (twisty knobs and pressy buttons!) with powerful automatic systems. For instance, the "start-stop", "total stop", and "leakage recognition" systems help to protect your machine from their own power. So, even if you forget to switch the switch off, the HD1140 will do so itself after 20-minutes. Safe as houses.

How do I get an HD1140?

The HD1140 is a three-phase/400V machine. If you would like to know more, ask for advice regarding your cleaning needs, or discuss the possibility of acquiring an HD1140, then please do not hesitate to get in touch with us by the messenger icon on our website, phone (01652)659759 or email .

If you would like additional general information regarding the Ehrle HD series click here.

Standard or Premium?

There are no performance differences between the standard and premium options as the base pressure washer remains the same. Instead, the premium option comes with several handy extras, such as a fitted hose reel, which is fantastic for reeling in and tidily storing your 20m hose (10m extra than the standard option), and a high-powered rotary nozzle lance. Below is a comprehensive table of the two, standard and premium, options:



Standard



Premium

Controls



Etronic II

High-pressure hose length (m)



10



20

Hose reel





Trigger gun with swivel





Spray Lance 900mm with nozzle protection





Stainless Steel jet nozzle 25°





Spray Lance 900mm with rotary nozzle





Water supply separation acc. water reg.





Chemical supply in high-pressure jet with a metering valve





Specification Comparison Table

Type (HD)   623   823   940   1140   1240
Voltage   1 /230V / 50Hz   3 / 400 - 415 / 50Hz
Operating pressure (bar)   30 - 160   30 - 140   30 - 190   30 - 230   30 - 160
Max. pressure (bar)   180   165   210   250   180
Discharge capacity (l/h)   300 - 600   300 - 720   300 - 840   300 - 1000   300 - 1200
Nozzle size   034   045   070
Hot water capacity (°C)   30 - 98 (Max. 150)
Pump speed (rpm)   1400
Connected load (kW)   3,1   3,4   5,4   7,6
Electrical protection   16 (slow-blowing)   3 x 16 (slow-blowing)
Standard Weight net / with package (kg)   149 / 170   158 / 179   159 / 180   178 / 199   177 / 198
Premium Weight net / with package (kg)   158 / 179   167 / 188   168 / 189   187 / 208   186 / 207
Standard Dimensions / with package (mm, L x W x H))   1070 x 735 x 1020 / 1160 x 770 x 960
Premium Dimensions / with package (mm, L x W x H)   1070 x 735 x 1310 / 1160 x 770 x 1350



Reviews

There are yet no reviews for this product.
