HD 623 - Etronic I (Ehrle)

Print
An efficient single-phase hot water pressure washer boasting a user-friendly design that is perfect for medium-duty cleaning tasks.
An Ehrle HD stood in front of an Idro Power van, ready to be loaded for delivery.Ehrle HD ready to be loaded into one of our service vans, for delivery.

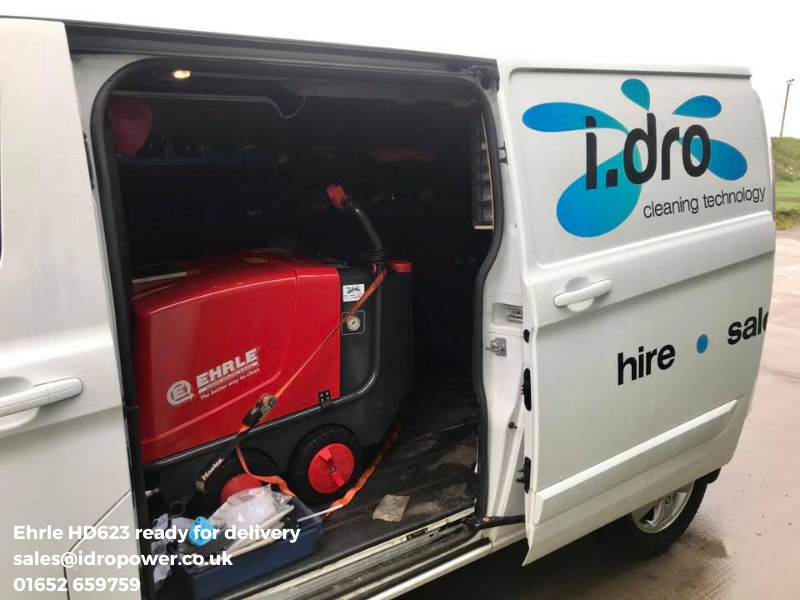

An Ehrle HD623 loaded in one of our Idro Power vans, ready to be delivered.
An Ehrle HD stood in front of an Idro Power van, ready to be loaded for delivery.
Description

Single Phase (230V) - Hot Water (30 - 98°C) - Mobile

Mounted on a sturdy chassis, with rubber wheels and protective, impact, dust and dirt-resistant ABS cover, the HD623 can be moved and used across large sites safely and efficiently. Furthermore, the HD623 sacrifices little in favour of its mobility and utility. Boasting Ehrle's prized high-performance triplex pump design, which can cook up a hair-raising 160BAR of pressure at a steamy 98°C, it will help you make light work of even your most demanding cleaning task.

To make cleaning even more seamless, Ehrle has fitted the HD623 with Etronic I controls. Straightforward to use, these controls support several automated systems that assist your cleaning work and help extend the pressure washer's lifespan. For instance, the Etronic I controls support a standby and total stop system. These systems not only reduce wear and tear, giving your steam cleaner a longer life, but they also turn your trigger gun into a form of remote control, meaning your pressure washer will pause between short rests. Moreover, if you happen to be distracted for a longer period of time, as we can be at work, the total stop system will safely switch the machine off, after 20 minutes of inactivity.

How do I get an HD623?

The added beauty of the HD623 is that it can do all of these things while still operating under a mains, 230V, supply. If you would like to know more, ask for advice regarding your cleaning needs, or discuss the possibility of acquiring an HD623, then please do not hesitate to get in touch with us by phone (01652)659759 or email .

If you would like additional general information regarding the Ehrle HD series click here.

Standard or Premium?

There are no performance differences between the standard and premium options as the base pressure washer remains the same. Instead, the premium option comes with several handy extras, such as a fitted hose reel, which is fantastic for reeling in and tidily storing your 20m hose (10m extra than the standard option), and a high-powered rotary nozzle lance. Below is a comprehensive table of the two, standard and premium, options:



Standard



Premium

Controls



Etronic I

High-pressure hose length (m)



10



20

Hose reel





Trigger gun with swivel





Spray Lance 900mm with nozzle protection





Stainless Steel jet nozzle 25°





Spray Lance 900mm with rotary nozzle





Water supply separation acc. water reg.





Chemical supply in high-pressure jet with a metering valve





Specification Comparison Table

Type (HD)   623   823   940   1140   1240
Voltage   1 /230V / 50Hz   3 / 400 - 415 / 50Hz
Operating pressure (bar)   30 - 160   30 - 140   30 - 190   30 - 230   30 - 160
Max. pressure (bar)   180   165   210   250   180
Discharge capacity (l/h)   300 - 600   300 - 720   300 - 840   300 - 1000   300 - 1200
Nozzle size   034   045   070
Hot water capacity (°C)   30 - 98 (Max. 150)
Pump speed (rpm)   1400
Connected load (kW)   3,1   3,4   5,4   7,6
Electrical protection   16 (slow-blowing)   3 x 16 (slow-blowing)
Standard Weight net / with package (kg)   149 / 170   158 / 179   159 / 180   178 / 199   177 / 198
Premium Weight net / with package (kg)   158 / 179   167 / 188   168 / 189   187 / 208   186 / 207

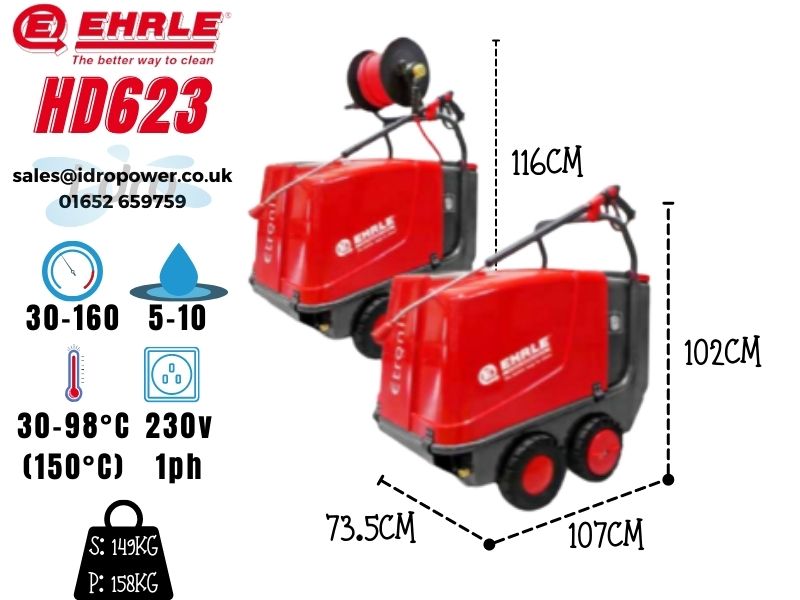

Standard Dimensions / with package (mm, L x W x H))   1070 x 735 x 1020 / 1160 x 770 x 960
Premium Dimensions / with package (mm, L x W x H)   1070 x 735 x 1310 / 1160 x 770 x 1350
